◆ TOOL METHODOLOGY     THE POLE REACH CALCULATOR14 min read · 3520 WORDS

Reading the pole: how the Pole Reach Calculator decides whether the access method matches the panel

The cantilever-beam deflection math behind the tool, the IWCA pole-work envelope that defines the 1.3× reach margin floor, the pole-angle efficiency that turns nominal pole length into vertical reach, the three material classes and their published deflection multipliers, the wind and footing corrections that move the verdict, and the boundary cases where the right answer is a lift or a rope-access subcontractor rather than a longer pole. The Mid-Atlantic and Southwest residential-and-light-commercial decision frame, ported to software.

D
Drew Giordano
EDITORIAL TEAM · MID-ATLANTIC & SOUTHWEST
UPDATED MAY 13, 2026
PUB. MAY 13, 2026
⚡ THE SHORT ANSWER

What the Pole Reach Calculator does, in five points:

  • It computes an effective vertical reach in feet — the operator's standing reach plus the deflection-corrected vertical contribution of the pole at its working angle. The effective reach is the number the trade decision turns on; everything else the tool reports is in service of that figure. The verdict tells you whether the effective reach gives you the margin the IWCA pole-work envelope calls for.
  • It uses standard cantilever-beam deflection theory for the pole-tip droop calculation, with material-specific stiffness multipliers (carbon-fiber × 0.60, hybrid × 0.75, aluminum-fiberglass × 1.00 reference) calibrated against published Tucker and Unger deflection charts. Deflection scales with the cube of the pole length over a 25-foot aluminum reference, so a 35-foot aluminum pole deflects nearly three times as much at the tip as a 25-foot one — a piece of physics that makes the difference between a clean pass and a smeared one.
  • It separates the pole's nominal length from its effective vertical reach through a 70° working-angle ceiling (giving 94% vertical efficiency) and a deflection-fraction subtraction. A nominal 25-foot pole, held at 70° from horizontal with 6% tip droop, contributes roughly 22 feet of vertical reach above the operator's grip — not the 25 feet the spec sheet implies. This is the single biggest correction the tool makes over a naive pole-length reading.
  • It returns one of three verdicts — GO, CAUTION, STOP — based on the ratio of effective reach to required reach (the panel height above the operator's footing). GO at ≥ 1.30× margin, CAUTION at 1.00× to 1.30×, STOP at < 1.00×. The 1.30× floor is the IWCA pole-work envelope: roughly 30% of pole length above the panel top to drive the squeegee through the bottom of the pass without the brush head dropping off-axis.
  • It produces specific adjustments rather than generic advice — step up to the next pole length, switch to hybrid or carbon-fiber construction, reposition to flat footing, wait for the wind to ease, reschedule the high-reach panels to the morning, add a fall-arrest tether, book a lift, call a rope-access subcontractor. Each adjustment is keyed to the input that drove the verdict, so the recommendations change as the conditions change. The same panel at the same height reads differently to the tool depending on whether the constraint is the pole, the footing, or the wind.

The tool exists so the operator does not have to carry the cantilever-deflection equation and the IWCA pole-work envelope in their head at the curb at eight in the morning on a Tuesday in May, on a residential address where the panel is just barely the wrong height for the pole on the truck. It does the math, and it returns the trade decision in a form the operator can act on in the time between racking the squeegee bucket and choosing which access method goes on the panel.

◆ OPEN THE TOOL
The Pole Reach Calculator  →
<!-- AUTO-GENERATED by scripts/inject-guide-cross-links.mjs. Source of truth: src/guides/pole-reach-calculator.md. Pass 3 (cross-article links): 3 links (1 contributor, 1 term, 1 related-article). -->

There is a residential job I worked years ago in the inland-empire stretch of the Southwest beat — three stories on a stucco-clad hillside, the property graded so the operator stood roughly four feet below the building footing. The panel was a stairwell window centered on the rear elevation, and on paper a 35-foot pole reached it comfortably. On the ground, with the slope angling the operator's stance further from the building and a steady late-morning wind off the desert floor, the 35-foot aluminum pole that should have reached the panel did not, in the sense that mattered. The brush head got there. The squeegee pass, eight minutes later, did not. The bottom inch of the panel left a film that the homeowner found at 2 p.m. when the sun moved.

The mistake was not a pole-length mistake. The pole was technically long enough. The mistake was a deflection mistake combined with a footing mistake compounded by a wind mistake — three small input variables that the operator did not have a way to put together at the curb. Each of them was modest on its own. Together they moved the working reach out of the envelope where a squeegee pass can be controlled, and the consequence was the redo plus an hour of conversation with the property manager.

The Pole Reach Calculator is the tool we built to put those input variables in front of the operator at the curb, before the pole comes off the truck. It does not tell you whether to do the job. What it does is convert the inputs the operator can read from the truck and the building — pole material, pole length, operator height, footing, wind, panel height, work duration — into the trade decision the operator actually has to make: does this pole reach this panel under control, or is the right call a different access method?

This piece is the methodology behind that decision. The cantilever-beam deflection physics the tool uses, the IWCA pole-work envelope the verdict ladder is anchored to, the pole-angle and footing corrections that turn nominal pole length into effective vertical reach, the material-specific stiffness multipliers that explain why a carbon-fiber pole at the same nominal length reaches further than an aluminum one, and the wind and fatigue penalties that move the verdict through the working day. The companion safety primer in long-form prose is Jan Davenport's working-at-height piece; the field-notes piece on the upper end of the access-method ladder is the Burj Khalifa reportage on what rope-access work actually involves. This is the piece for the user who wants to understand why the tool returned what it returned.

The rule that comes before everything

A water-fed pole is an access method, not a magic wand. The same panel can be reached with a 25-foot pole, with a 35-foot pole, with an extension ladder, with a scissor lift, with a boom, or with rope access — and the right access method is the one that gives the operator brush-head control and squeegee-pass control on the panel for the work being done. Pole reach is not the same as panel access. A pole that "reaches" the panel in the sense of putting the brush bristles against the glass is not necessarily a pole that can drive a squeegee pass cleanly. The deflection at the tip, the working angle, the operator's footing, the wind, and the fatigue at the end of a long route all narrow the effective working envelope below the nominal length printed on the pole.

This is the rule the tool puts in front of the operator: pole reach is the practical envelope after corrections, not the nominal length on the spec sheet. The operator who calibrates against the spec sheet — "I have a 35-foot pole, the panel is thirty feet up, I'm covered" — is the operator who finds out at 11 a.m. that they are not.

The IWCA pole-work envelope and the 1.3× margin floor

The verdict ladder the tool uses (GO at ≥ 1.30×, CAUTION at 1.00× to 1.30×, STOP at < 1.00×) is anchored to the IWCA pole-work envelope, which is the practical margin the trade has converged on for clean pole-based squeegee work. The envelope is documented in the IWCA technical bulletins on water-fed pole technique and in the Tucker and Unger reach charts that come with the major commercial poles, and it is the same number in all of them: the operator needs roughly 30% of pole length above the top of the panel to drive the squeegee through the bottom of the pass under brush-head control.

The physics behind the 30% number is straightforward. The squeegee pass starts at the top of the panel and runs to the bottom. As the squeegee descends, the operator has to angle the pole forward — pushing the brush head closer to the wall — to keep the blade engaged with the glass. The pole's working angle steepens through the pass. If the brush head is at the top of the panel when the pass starts, by the time the squeegee reaches the bottom the brush head has dropped off-axis, the blade angle has gone flat, and the bottom of the pass smears rather than draws.

The 30% buffer above the panel top is what lets the brush head stay on the panel through the pass. Without it, the operator can put solution on the panel, but they cannot draw a clean squeegee line all the way to the bottom. The bottom inch of the panel is where the residue ends up.

The tool's 1.30× margin floor for the GO verdict is a direct translation of the 30% buffer. The CAUTION band (1.00× to 1.30×) is the working envelope where a clean pass is possible but the technique tolerances are tight — an unusually attentive brush-head control through the bottom of the pass can recover it, but a routine pass under those conditions produces the bottom-inch residue pattern. The STOP band is where the buffer has gone negative: the brush head will be off the panel before the squeegee finishes, and the operator should not commit the pass.

Cantilever-beam deflection and the cube-of-length penalty

The second piece of physics the tool needs is the deflection of the pole at the tip — how far the brush head droops below the geometric line the operator's grip implies. This is the input that separates a 25-foot pole's effective reach from a 35-foot pole's effective reach by more than the ten-foot difference suggests.

A water-fed pole at extension is a cantilever beam — fixed at the operator's grip, free at the brush-head tip, loaded by the pole's own weight plus the brush head's weight plus any water in the brush. Standard cantilever-beam deflection theory gives the tip deflection as proportional to L³/EI, where L is the cantilever length, E is the elastic modulus of the material, and I is the area moment of inertia of the cross-section. For a given pole construction (fixed E and I along the pole), deflection scales with the cube of the length.

The cube relationship is what makes pole length a non-linear input. A 25-foot pole that deflects 18 inches at the tip (6% of its length) is not a 35-foot pole that deflects 25 inches. The 35-foot pole, in the same material at the same wall thickness, deflects (35/25)³ × 18 inches = 49 inches — over four feet of tip droop. Most of that four feet of droop is below the panel, and the brush head is no longer on the line the operator's grip implies.

The tool's deflection calculation uses 6% of pole length at the 25-foot aluminum reference, scaled by the cube of length over reference and by a material-specific stiffness multiplier:

  • Carbon-fiber (Tucker C-series, Unger nLITE Carbon): × 0.60. The stiffest practical pole material. A 35-foot carbon pole deflects roughly the same as a 25-foot aluminum pole.
  • Hybrid carbon/aluminum (Unger HiFlo Hybrid, Tucker Hybrid): × 0.75. The standard residential workhorse — aluminum-cored sections with carbon outer reinforcement. A compromise between cost and deflection.
  • Aluminum-fiberglass (entry-level commercial pole construction): × 1.00. The reference material. Acceptable for residential up to two stories from flat footing; not appropriate above 25 feet for clean pass work.

The material multiplier is calibrated against the published Tucker and Unger industry deflection charts, which give measured tip-deflection figures at standard load conditions for the major pole product lines. The published values are conservative — they assume a wet brush head with full water flow, which is the working condition — and the tool uses them directly rather than the dry-pole figures sometimes quoted in marketing material.

The 70° working angle and the pole-angle efficiency

The third piece of physics the tool needs is the conversion from nominal pole length to vertical reach above the operator's grip. The pole is held at an angle, not vertical, and only the vertical component of the pole length contributes to reach above the operator.

The IWCA pole-work technique guidelines specify a working angle of approximately 70° from horizontal as the ceiling for controlled pole work. At 70°, the vertical component is sin(70°) ≈ 0.94 — meaning 94% of the nominal pole length translates into vertical reach above the operator's grip. At 60° (a flatter angle), the vertical component is sin(60°) ≈ 0.87. Above 70°, the pole approaches vertical, but the operator loses brush-head control — the angle is too steep to drive the squeegee through the pass without the brush head wandering off-axis, and the pole has to be backed off.

The tool uses a fixed 70° working angle, which gives a constant 0.94 pole-angle efficiency. This is a conservative simplification — in practice the operator chooses the working angle to match the panel and the conditions — but 70° is the practical ceiling the IWCA envelope assumes at planning time. An operator working a flatter angle than 70° has less vertical reach than the tool reports; an operator trying to work a steeper angle than 70° has less brush-head control than the tool assumes, and the verdict's CAUTION recommendations apply with extra weight.

The operator's standing reach

The fourth input the tool needs is the operator's contribution to the effective reach — the standing reach with the pole grip near the bottom. This is the height at which the operator can comfortably grip the pole while still driving it through the squeegee pass; it is not the same as the operator's total overhead reach.

The tool uses a standard ergonomic approximation: standing reach ≈ operator height + 24 inches. For a 5'10" operator (70 inches), this gives 70 + 24 = 94 inches, or 7.83 feet of standing reach. The +24-inch additive is approximate; it accounts for the practical limit of grip strength on a wet pole and the comfortable shoulder-elevation working position. An operator who can reach further overhead than this in isolated terms is not necessarily an operator who can drive a squeegee pass from that grip height for a sustained pole pass — wet poles, slippery grips, and the brush-head torque under load all argue for a more conservative working grip than the operator's gymnastic overhead reach would suggest.

The standing reach is what the pole's vertical contribution stacks on top of. A 25-foot pole giving 22 feet of vertical contribution (after pole-angle efficiency and deflection correction) on a 7.83-foot operator gives an effective reach of 29.83 feet. That is the number the verdict math compares against the panel-top height.

Footing: where the operator stands

The fifth input is the operator's footing, which affects the pole-control envelope rather than the pole length directly. A pole on flat ground is the reference case the deflection and angle math is calibrated against. Anything else degrades the control envelope:

  • Flat ground (lawn, asphalt, concrete): × 1.00 control. The reference case. The operator can plant both feet, brace against the pole's torque load, and drive the squeegee pass through the full vertical range.
  • Sloped uphill toward the building: × 0.92 control. The operator stands below the building footing; the pole-tip angle decreases (more horizontal), the effective vertical reach drops, and the over-extension risk increases.
  • Sloped downhill from the building: × 0.92 control. The operator stands above the building footing; the pole-tip angle steepens past 70°, and the brush head goes off-axis under load.
  • Raised platform (deck, single elevation step): × 0.85 control. The operator gains a few feet of standing reach but loses some pole-control envelope because the deck edge becomes a fall hazard during the pass.
  • Balcony or elevated footing: × 0.75 control. Substantially elevated footing changes the work fundamentally — the consequence of pole drop is higher, the operator's stance is more constrained, and the IRATA / SPRAT recommendation is fall-arrest tether or rope access for any work at this footing height.

The footing control multiplier is a reduction of the effective reach, not a separate term. A 25-foot pole on flat ground that gives 22 feet of vertical contribution gives 22 × 0.92 = 20.2 feet on a sloped footing — a 1.8-foot reduction that may be the difference between GO and CAUTION on a panel near the margin.

Wind and the deflection penalty

The sixth input is wind, which adds to the deflection at the tip through a saturating-curve penalty:

  • Calm (under 5 mph): no deflection penalty. The reference case.
  • Light breeze (5–10 mph): +10% deflection. Manageable for a competent operator on residential work.
  • Moderate (10–18 mph): +20% deflection. Full-extension pole work above 25 feet becomes technique-fragile; the leeward elevation is the friendly side.
  • Gusty (18+ mph): +35% deflection plus unpredictable directional shifts. Pole work above 18 feet is not recommended.

The wind penalty multiplies the deflection fraction, not the absolute deflection — which is the right behavior, because a small absolute deflection at a short pole length gets a small absolute wind penalty, and a large absolute deflection at a long pole length gets a large one. The combined effect is that wind hurts long poles more than short ones, which matches the field experience.

The boundary case the tool handles separately is the combination of balcony footing and gusty wind. Pole work from an elevated footing in gusty wind is the configuration where a brush-head torque event becomes a fall event, and the IWCA and IRATA literature is unambiguous: this is not pole work, regardless of what the reach math says. The tool returns a hard STOP verdict for that combination regardless of the other inputs, with the fall-arrest-tether-or-subcontract adjustment as the only recommendation.

Work duration and the fatigue penalty

The seventh input is work duration, which is a fatigue penalty on the effective reach margin. The first three panels of the morning are clean; the twentieth panel of the afternoon is where the deflection takes the brush head somewhere it should not be. The tool conservatively shrinks the effective reach margin for longer durations:

  • Single panel or short call (1 panel, 1 elevation): × 1.00. No fatigue penalty.
  • Short route (2–5 panels at one address): × 0.95. Slight penalty, mostly absorbed by the technique buffer.
  • Full route day (8+ panels across multiple addresses): × 0.88. Meaningful penalty by the afternoon.

The fatigue penalty is the input that explains the standard pole-route scheduling pattern: the high-reach panels go first in the morning. An operator running a full-route day on a panel near the margin should schedule it in the first three hours, when the practical reach matches the reach math. By the afternoon, the same panel at the same conditions may have moved out of the GO band even though nothing on the building has changed.

The verdict logic

The verdict math is straightforward once all the corrections are applied:

Standing reach    = operator height + 24 in
Tip deflection    = 6% of L × (L/25)³ × material multiplier × (1 + wind penalty)
Pole vertical     = L × 0.94 × (1 − tip deflection) × footing control
Effective reach   = standing reach + pole vertical
Practical reach   = effective reach × fatigue multiplier
Reach margin      = practical reach / panel-top height

The verdict ladder:

  • GO at reach margin ≥ 1.30× (the IWCA pole-work envelope)
  • CAUTION at 1.00× to 1.30× (technique-fragile but possible)
  • STOP at < 1.00× (the pole will not reach the panel under control)

Plus the hard-override:

  • STOP at balcony footing + moderate or gusty wind (regardless of reach math)

The adjustments — what they mean

The adjustments the tool surfaces in the CAUTION and STOP cases are not generic recommendations. Each is keyed to a specific input that is driving the verdict, and the order they appear matches the order an operator would consider them at the curb:

  1. Step up to the next pole length. The first lever, when it is available. The tool checks whether a longer pole would move the verdict to GO before recommending it.
  2. Switch to hybrid or carbon-fiber construction. Material upgrade is the second lever — it reduces deflection at the same nominal length, which is often enough to recover the margin without buying a longer pole.
  3. Re-position to flat footing. If the footing is the constraint, this is the cheapest adjustment — a step-stool on flat ground a few feet from the building line is often the difference between STOP and GO.
  4. Wait for the wind to ease, or work the leeward elevation. If wind is the constraint, the leeward side of the building is usually a different verdict than the windward side, and the morning's first three hours are usually quieter than the afternoon.
  5. Add a fall-arrest tether. The mandatory adjustment for any elevated-footing pole work — not a recommendation but a requirement under the IRATA / SPRAT guidance.
  6. Reschedule the high-reach panels to the morning. The fatigue penalty is the one that moves with the working day; rearranging the route order is the no-cost adjustment.
  7. Book a lift or call a rope-access subcontractor. The boundary adjustment — when the reach math is hopelessly short, the right access method is not a longer pole.

The adjustments are written as paragraphs rather than bullet points because the reasoning behind each one is part of the trade decision. The operator should be able to read the adjustment and understand why it applies, not just what it recommends.

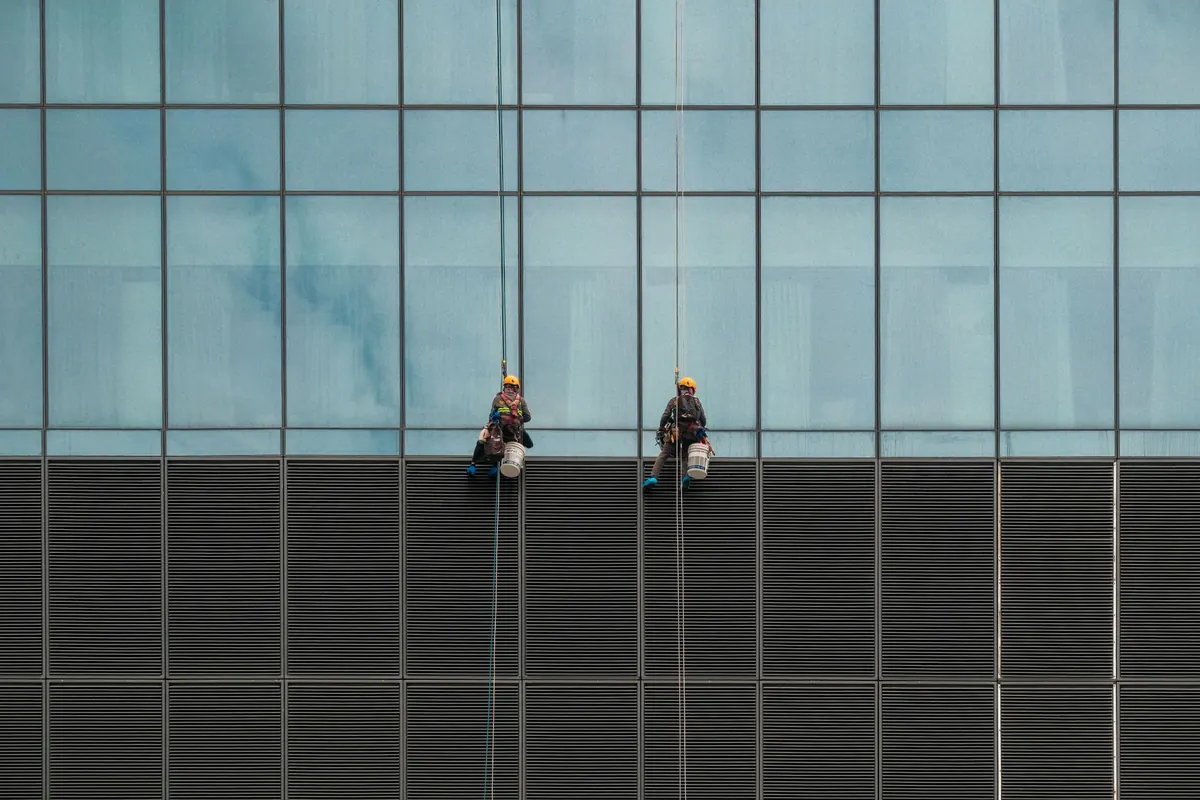

The boundary case: when pole work ends and rope access begins

The tool's verdict ladder does not extend above 45 feet of pole length. That ceiling is deliberate. Pole work above 45 feet is not impossible, but it crosses into a regime where the deflection penalty makes clean squeegee passes unreliable even with the best carbon-fiber construction, and the right access method becomes a scissor lift, a boom lift, or a rope-access subcontractor. The IRATA and SPRAT certifications exist for a reason — rope-access work is a different discipline with its own training pipeline, its own equipment, and its own safety culture. The right answer for high-rise residential and commercial work above 45 feet is to subcontract to a certified rope-access operator, not to extend a pole into a regime where the brush head wanders.

The Burj Khalifa piece in the Field Notes pillar covers what rope-access window cleaning actually involves on the upper extreme of that ladder. The relevance to the calculator: the rope-access access method is not just a longer pole. It is a different trade, and the tool's role in the decision is to make clear when the panel has moved out of pole-work territory and into rope-access territory.

Calibration and limits

The tool is calibrated against Mid-Atlantic and Southwest residential and light-commercial route data, with the deflection multipliers anchored to the published Tucker and Unger industry charts and the verdict thresholds anchored to the IWCA pole-work envelope. The calibration holds well for the 12-to-45-foot pole range in routine residential and light-commercial work; it is conservative at the boundary cases where the verdict approaches STOP, which is the right direction for a safety-adjacent tool to err.

The math assumes a standard brush head (10 to 14 inches, residential trim configuration) at full water flow with a 6-foot supply hose. Heavier brush configurations (commercial trim with full bristle complement, or specialized rinse heads) deflect more at the same length and should be treated as one step further down the verdict ladder than the tool reports. The tool also assumes a competent operator with at least one full season of pole experience — the rookie-operator case has a narrower technique buffer than the experienced-operator case, and the rookie should treat CAUTION verdicts as STOP verdicts until the technique buffer is built.

The math does not handle wet or icy footing, which is a separate hazard category and not a pole-reach question. An operator standing on wet grass or on a frosted deck should not be doing pole work regardless of what the reach math says.

Closing

The reach is what the deflection lets it be, not what the pole says it is. The tool exists so the operator can see that translation at the curb, before the pole comes off the truck and before the access-method decision is committed. The Mid-Atlantic and Southwest beat sees the consequence of the wrong access-method decision on a regular cadence — most of those consequences are the redo, some of them are the property-manager call, and the rare ones are the trip to the urgent-care clinic. The math here is the input that prevents most of them.
